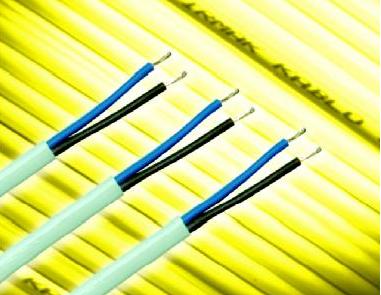

Flat-shaped flexible multi-core cables |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
H03VVH2-F |
|
|
|
|
|
|
| Conductor |
Insulation |
Jacket |
Outer Diameter |
Max. resistance |
Weight |
| Cross Section |
No. & Diameter |
Thickness |
Thickness |
min. |
max. |
at 20 °C |
approx. |
| (mm²) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mΩ/m) |
(kg/km) |
| 2x0.50 |
16x0.19 |
0.5 |
0.6 |
3.0x4.9 |
3.7x5.9 |
39 |
45 |
| 2x0.75 |
24x0.19 |
0.5 |
0.6 |
3.2x5.2 |
3.8x6.3 |
26 |
50 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Description |
|
Applications |
|
|
|
|
- Bare stranded copper conductor |
-Suitable for light moveable equipment, in houses |
|
- Color-coded PVC insulation |
and offices (wiring for light portable appliances which |
|
- PVC jacket cord |
are subject to slight mechanical stress) |
|
- Rated Temperature: 70°C |
- Also suitable where good flexibility is required, |
|
- Rated Voltage: 300V / 300V |
provided there is no risk of mechanical damage. |
|
|
|
|
- For connection of household appliances, radio |
|
|
|
|
and TV sets and electrical devices to the power |
|
|
|
|
supply networks with rated voltage U0/U – 300/300V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
H05VVH2-F |
|
|
|
|
|
|
| Conductor |
Insulation |
Jacket |
Outer Diameter |
Max. resistance |
Weight |
| Cross Section |
No. & Diameter |
Thickness |
Thickness |
min. |
max. |
at 20 °C |
approx. |
| (mm²) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mΩ/m) |
(kg/km) |
| 2x0.75 |
24x0.19 |
0.6 |
0.8 |
3.7x6.0 |
4.7x7.2 |
26 |
36 |
| 2x1.00 |
32x0.19 |
0.6 |
0.8 |
3.9x6.2 |
4.7x7.5 |
19.5 |
45 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Description |
|
Applications |
|
|
|
|
- Bare stranded copper conductor |
- In household and office appliances which are subject |
|
- Color-coded PVC insulation |
to medium mechanical stress. |
|
- PVC jacket cord, flat type |
- For domestic appliances in damp conditions |
|
- Rated Temperature: 70°C |
(washing machines, hairdryers, refrigerators, etc) |
|
- Rated Voltage: 300V / 500V |
- Permitted for domectic heating appliances provided |
|
|
|
|
they do not come into contact with sources of heat |
|
|
|
|
or radiation. |
